A new AI framework builds realistic virtual worlds to train self-driving cars, and it splits the city into two layers to do it

Training an autonomous vehicle's perception system requires enormous amounts of LiDAR data, the laser-based sensing technology self-driving cars use to build a 3D map of their surroundings, capturing everything from stationary buildings to pedestrians stepping into a crosswalk. Real-world data is expensive and slow to collect at the scale modern AI models need. A new framework called HieraScaffold, from researchers at Singapore University of Technology and Design, is designed to generate synthetic versions of that data that are realistic enough to actually help.

Why "4D" and why it's hard

Standard LiDAR data captures a 3D snapshot of an environment at a single moment. Autonomous vehicles need to understand how that environment changes over time, a parked car versus one about to pull out, a pedestrian standing still versus stepping forward, which is what "4D" refers to here: three spatial dimensions plus time. Generating realistic synthetic data that captures both a coherent static environment and physically plausible movement within it, at the scale of an entire street or city block, has been a significantly harder problem than generating a single realistic 3D scene.

How HieraScaffold approaches the problem

Rather than trying to densely represent an entire 3D or 4D space, which becomes computationally enormous at city scale, HieraScaffold builds a compact "scaffold" around the surface-adjacent regions that LiDAR sensors actually sample, rather than modeling the full volume of space. It separates static background elements, roads, buildings, fixed structures, from dynamic foreground elements, vehicles, pedestrians, compressing each into its own compact representation. The system generates the static scaffold first, then generates the dynamic elements conditioned on that already-established static environment, rather than trying to generate both simultaneously.

What the results actually showed

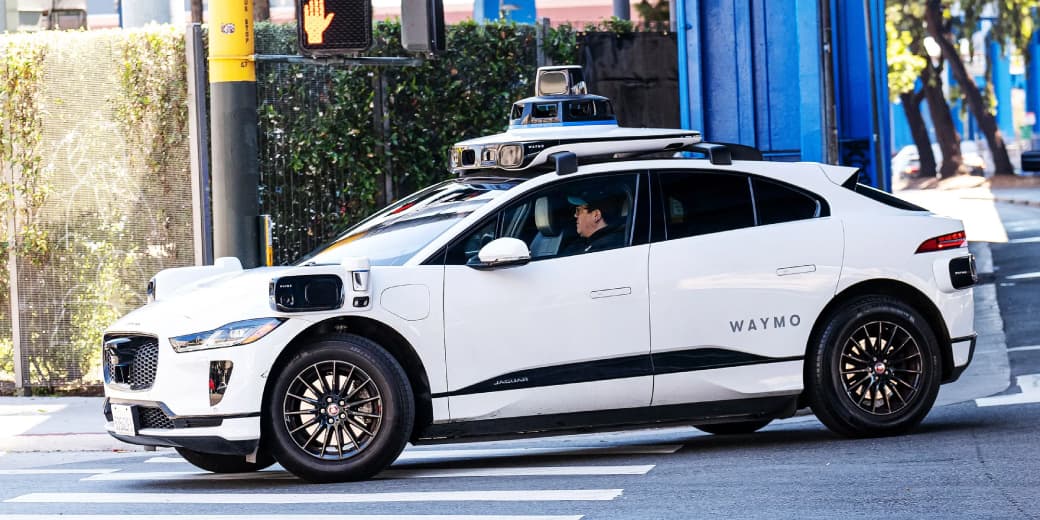

Tested against the KITTI-360 and Waymo Open datasets, two of the most widely used benchmark datasets in autonomous vehicle research, HieraScaffold improved both spatial realism and temporal consistency compared to prior generation methods. On the practical side, the researchers found that synthetic data generated by the system, when used to augment limited real-world data, improved downstream tasks like segmentation and vehicle detection performance. It's worth being precise about the limits of that finding: the research describes synthetic data as complementary to real data, improving results when combined with it, not as a wholesale replacement for real-world data collection.

The tecMAMBO take

The unglamorous reality of autonomous vehicle development is that progress depends heavily on training data availability, and the rarest, most valuable training data is exactly the kind that's hardest and most dangerous to collect on purpose: unusual, unpredictable urban situations. A framework that can generate more of that specific kind of data synthetically, and do it in a way that measurably improves detection performance when combined with real data, addresses a genuine bottleneck rather than a cosmetic one.

The honest caveat, which the researchers themselves included, is that this is a complement to real-world data collection, not a substitute for it. Anyone reading a headline suggesting synthetic data generation has solved autonomous vehicle training data scarcity is reading more into this than the actual research supports.

Why a hierarchical representation saves work

A LiDAR sensor records points on visible surfaces, not every empty coordinate in a city-sized volume. Modeling all that empty space wastes memory and computation. HieraScaffold concentrates representation near relevant surfaces and divides the scene into a static scaffold and dynamic objects. The hierarchy gives the generator a stable street layout first, then a structured way to place motion within it over time.

That separation also matches how downstream perception systems reason. Buildings and road geometry usually persist, while vehicles, cyclists, and pedestrians move through them. A model that preserves both the stable context and temporally coherent movement can generate sequences that are more useful for training than isolated frames that look plausible but contradict one another from moment to moment.

Synthetic data still needs a reality check

Generated scenes can increase coverage of uncommon conditions, but they can also reproduce the blind spots of their training data or introduce artifacts that a detector learns by accident. Teams need held-out real-world benchmarks, scenario diversity checks, and analysis by weather, geography, object type, and distance. Improvement on KITTI-360 and Waymo Open is encouraging evidence, not a universal safety certificate.

For African cities, the open question is domain coverage. Road markings, vehicle fleets, pedestrian behavior, lighting, and street geometry can differ from the datasets most commonly used in autonomous-driving research. A scalable generator could eventually help, but only if it is trained and evaluated with representative local data. HieraScaffold reduces the cost of constructing synthetic sequences; it does not remove the need to measure whether those sequences resemble the places where a system will operate.
